Implement Phantom Token (Token Conversion) Model

Create JWT Claim

Navigate to Access ›› Federation : OAuth Authorization Server : Claim

Configure with following parameters:

  • Name: username_internal

  • Claim Type: string

  • Claim Name: name

  • Claim Value: %{session.oauth.scope.last.introspect.username}

_images/301-jwt-claim-1.png

Create JWT Key

Navigate to Access ›› Federation : JSON Web Token : Key Configuration

Configure new JWT key configuration with following parameters:

  • Name: api-jwt

  • ID: api-jwt

  • Type: Octet

  • Signing Algorithm: HS256

  • Shared Secret: rahasia

_images/301-jwt-key-1.png

Create OAuth Bearer Profile

Navigate to Access ›› Single Sign-On : OAuth Bearer

Click create and configure with following parameters:

  • Name: internal_jwt

  • Token Source: Generate JWT

  • Issuer: https://percobaan

  • Subject: clear the value or leave default

  • Signing Key: api-jwt

  • Scope: %{session.oauth.scope.last.introspect.scope}

  • JWT Claims: Move username_internal from Available to Selected

_images/301-sso-1.png

Add SSO In Access Profile

Edit resource server access profile previously created in Create Access Profile for Resource Server. Navigate to Access ›› Profiles / Policies : Access Profiles (Per-Session Policies) ›› app-1-ap then open the SSO / Auth Domain tab.

Change SSO Configuration to internal_jwt

_images/301-sso-2.png

Test The Configuration

Back to Postman GUI

  1. Get new access token

    _images/301-test-1.png

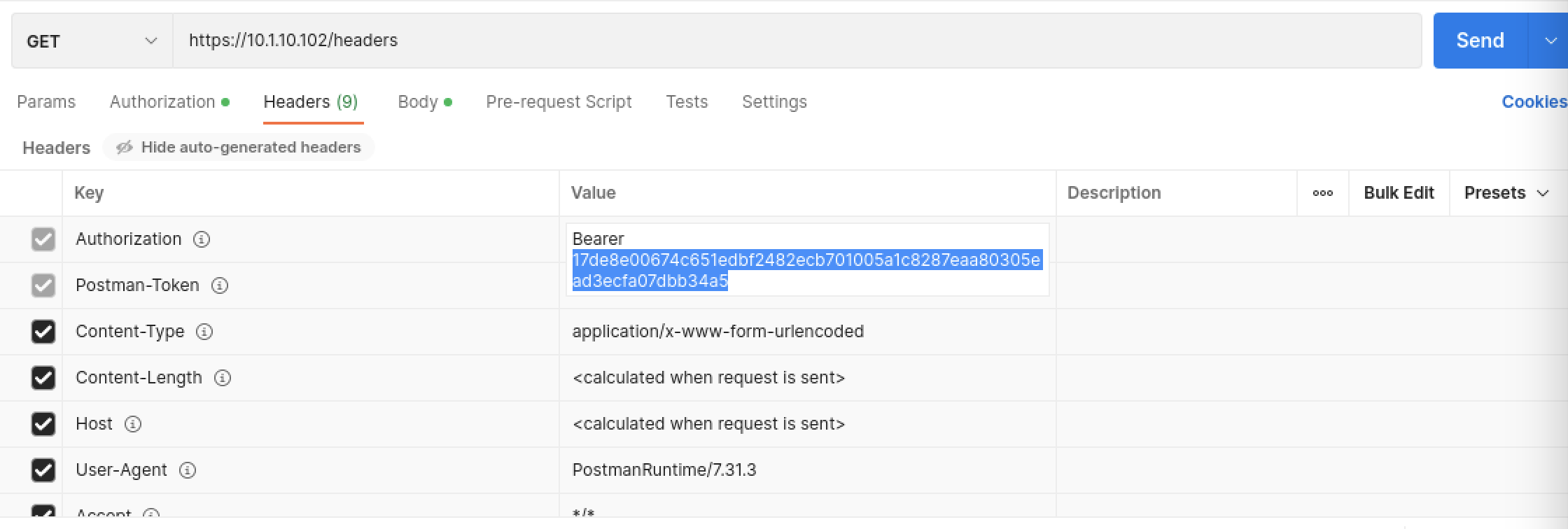

  2. New opaque access token is set as Authorization in request header. Click Send to create the request.

    _images/301-test-2.png

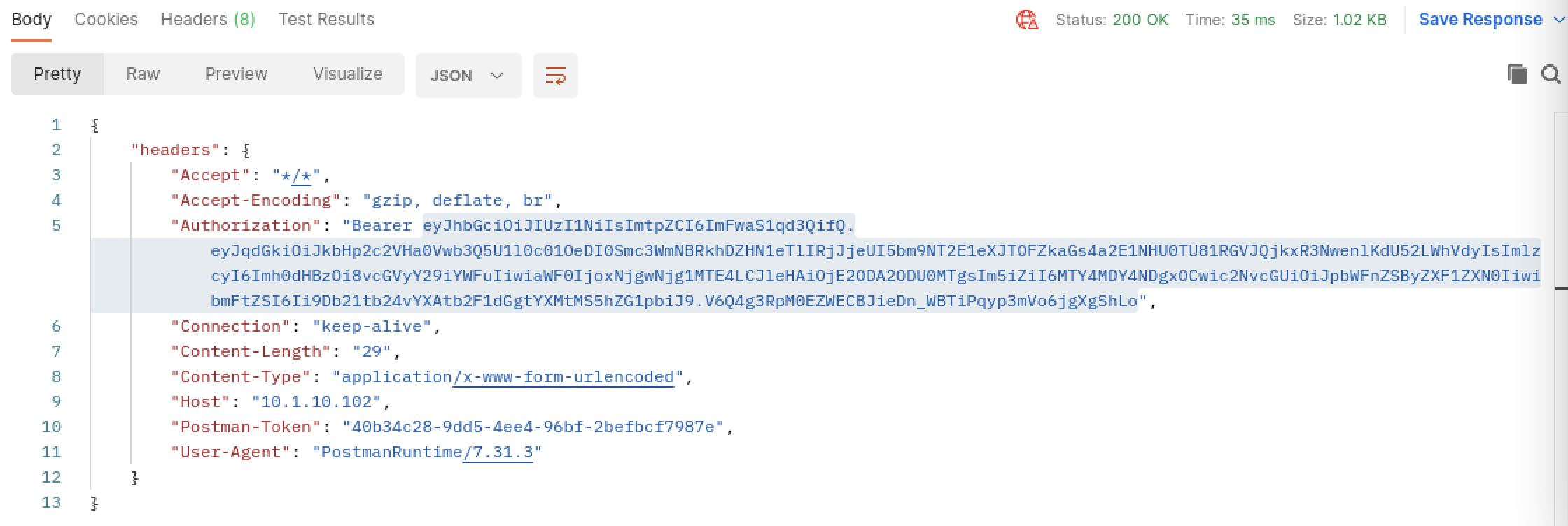

  3. The opaque token converted to JWT as reported in httpbin response.

    _images/301-test-3.png

  4. Open JWT decoder from https://jwt.io then copy & paste JWT access token string. See the scope & name value.

    _images/301-test-4.png

This conclude phantom token lab guide.
