Configure Opaque Access Token Provider

Creating OAuth Scope

Navigate to Access ›› Federation : OAuth Authorization Server : Scope

Click Create button and fill in following parameters:

  • Name: request

  • Scope Name: request

  • Caption: request

_images/11-new-scope.png

Click Repeat button, and create another scope below:

  • request.headers

  • request.ip

  • request.user-agent

  • image

  • image.jpeg

  • image.png

  • image.svg

  • image.webp

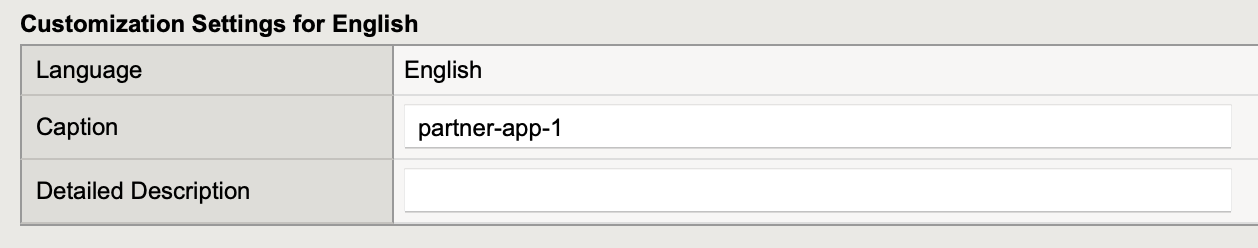

Add OAuth Client

Navigate to Access ›› Federation : OAuth Authorization Server : Client Application

Click Create button and fill in following parameters:

  • Name: partner-app-1

  • Application Name: partner-app-1

  • Caption: partner-app-1

  • Grant Type: Authorization Code / Hybrid

  • Redirect URI(s): https://callback

  • Scopes: request; image

After creation, click to OAuth client name to see generated Client ID & Secret, save it to be used on later step.

_images/12-oauth-client-1.png _images/12-oauth-client-2.png _images/12-oauth-client-3.png

Add Oauth Resource Server (RS)

Navigate to Access ›› Federation : OAuth Authorization Server : Resource Server

Click Create button and fill in following parameters:

  • Name: app-1-rs

  • Authentication Type: Secret

After creation, click again to RS name to see resource server ID & Secret, save it to be used on later step.

_images/13-oauth-rs-1.png

Create OAuth Profile

Navigate to Access ›› Federation : OAuth Authorization Server : OAuth Profile

  • Name: oauth-opaque

  • Client Application: Move partner-app-1 from Available to Selected

  • Resource Server: Move app-1-rs from Available to Selected

_images/14-oauth-profile-1.png

Create Local Identity Provider (IdP)

Navigate to Access ›› Authentication : Local User DB : Instances

Click Create New Instance button to create new user database instance & fill in following parameters:

  • Name: demo-users

  • Lockout Interval (in seconds): 600

  • Lockout Threshold: 3

  • Dynamic User Remove Interval (in seconds): 1800

_images/15-local-db-1.png

Add User Credentials

Create users from menu: Access ›› Authentication : Local User DB : Users

  • user/pass: admin/admin

  • user/pass: operator/operator

_images/16-new-user-1.png

Create Access Policy

Navigate to Access ›› Profiles / Policies : Access Profiles (Per-Session Policies)

  • Name: ap-oauth-as-1

  • Profile Type: All

  • OAuth Profile:

  • Languages: English (en)

_images/17-ap-oauth-1.png _images/17-ap-oauth-2.png _images/17-ap-oauth-3.png

Create Access Policy Flow

Edit just created policy using Visual Policy Editor (VPE)

_images/18-vpe-1.png

Add Logon > Logon Page

_images/18-vpe-3.png

Add Authentication > LocalDB Auth

_images/18-vpe-4.png

Add Authentication > OAuth Authorization

_images/18-vpe-5.png

Change OAuth Authorization end to “Allow”

_images/18-vpe-6.png

The policy flow view

_images/18-vpe-7.png

Apply Access Policy & Close the VPE

Create Virtual Server

Create a virtual server to serve as OAuth Authorization Server service

  • Name: oauth_as_vs

  • Destination Address/Mask: 10.1.10.70

  • Service Port: 443

  • HTTP Profile (Client): http

  • SSL: clientssl

  • Access Profile: ap-oauth-as-1

Testing Opaque Access Token Request

Get bearer token test using Postman

Configure Postman as partner-app-1 client then click the Get New Access Token Use Client ID & Secret generated in Add OAuth Client section.

_images/19-test-1.png

Verify user credential

_images/19-test-2.png

Authorization confirmation

_images/19-test-3.png

Opaque access token received from OAuth AS

_images/19-test-4.png

This conclude the configuration opaque access token provider.
